JY96-IIN
NADE
220V/110V/ 50Hz/60HZ
1
1 year
China
Introduction
Ultrasonic cell crusher (crusher or ultrasonic cracker) is a multi-functional and multi-purpose instrument that uses strong ultrasound to produce cavitation effect in liquid and ultrasonically treat substances. It can be used for a variety of animal and plant cells and viruses. Cell disruption can also be used for emulsification, separation, extraction, defoaming, degassing, cleaning and accelerating chemical reactions, etc. It is used in the teaching, research and production of biochemistry, microbiology, medicinal chemistry, surface chemistry, physics, zoology, agronomy, pharmaceuticals and other fields.
Features
1. Full-featured, beautiful appearance, reliable performance, using the latest single-chip technology + 4.3-inch TFT capacitive touch screen control (7-inch optional), optional computer communication or data printing functions.
2. High degree of intelligence, PID control, centralized control by the central computer, ultrasonic time and power can be set from 1%-100%.
3. Sample temperature detection and display, frequency microcomputer automatic tracking, automatic fault alarm.

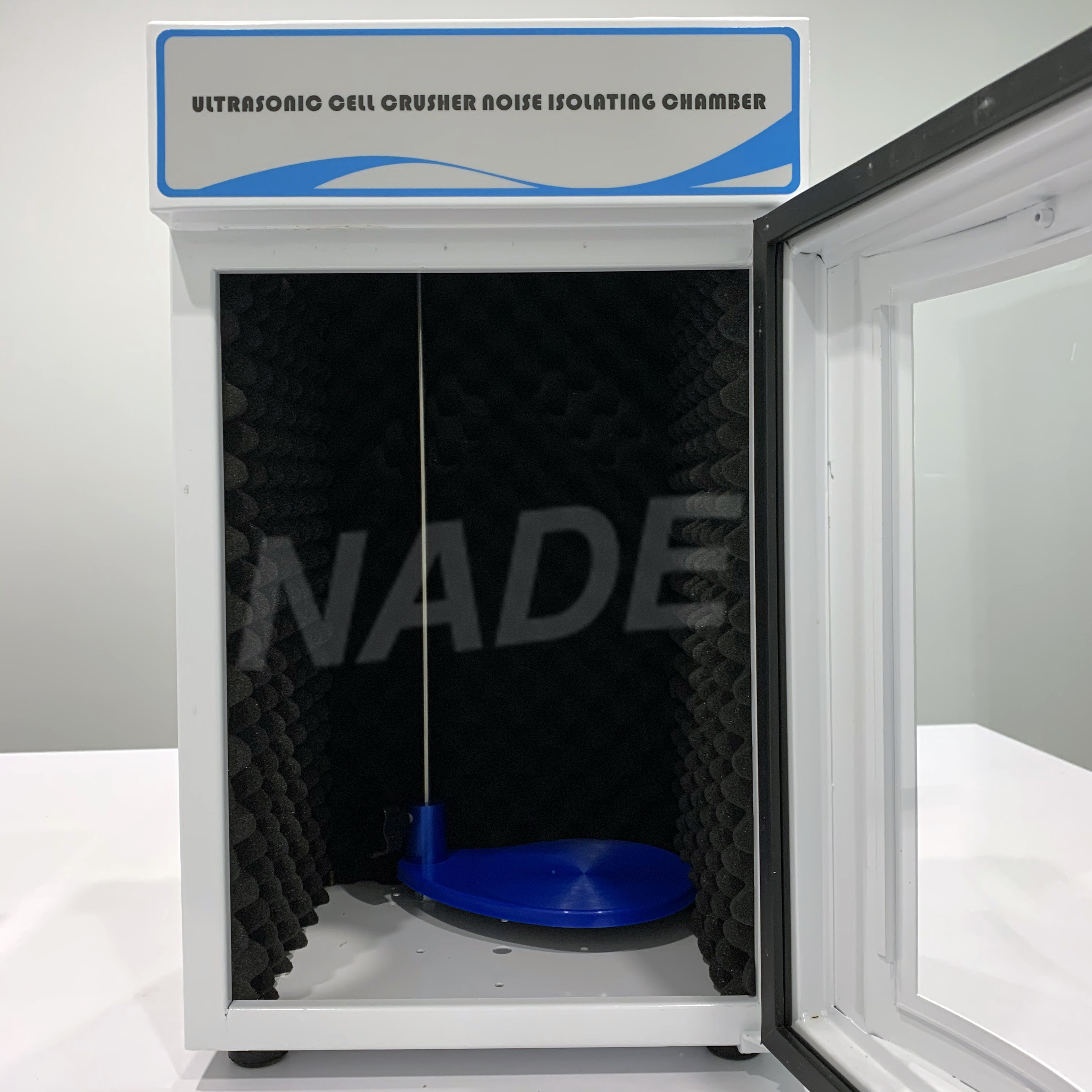

4. Equipped with a soundproof box, reducing noise by more than 70%.
5. Supporting Alcoa 7075 transducer + a set of high-purity titanium alloy horns, industrial horns can continuously achieve ultrasound for more than one hour (only high-purity titanium alloys can be achieved).
6. With overload protection function and the horn is not immersed in liquid, it will automatically protect the horn from damage.
7. It can realize the voice alarm function caused by malfunction, over-temperature or operation error, which is more humane.
Specification
Model | JY92-IIN | JY96-IIN | JY98-IIIDN |
Power | 10-650W Continuous | 1.5-150W Continuous | 20-1200W Continuous |
Mixing capacity | 0.1-500ml( with optional probe ) | 0.1-150ml( with optional probe ) | 1-1000ml( with optional probe ) |
Optional probe | Φ2, 3, 10, 12(mm) | Φ2, 3, 8(mm) | Φ3, 6, 10, 15, 22, 25(mm) |
Ultrasonic setting time | 0.1-99.9S | ||
Single stop time | 0.1-99.9S | ||
Total time setting | 1-99H59M59S | ||
Frequency range | 20-25KHz | 19.5-20.5KHz | |
Temp control range | 0-100 degrees (optional low temperature and constant temperature) | ||
Alarm function | Temp, time, overload, no-load | Temp, time, overload, no-load, over temp | |
Probe(standard) | Φ6(mm) | Φ20(mm) | |
Display mode | Touch screen | ||
Data storage | 20 sets | ||
Power supply (optional 110V) | 220V/110V/ 50Hz/60Hz | ||
Exterior dimension | 410*225*290(mm) | ||
Optional function | Computer+data printing function+ soundproof cabinet Lighting and sterilization | ||
Control mode | Single chip microcomputer + TFT touch control | ||
Voice alarm and prompt function | Yes | ||
Optional accessories:
High purity titanium alloy material ,Anti corrosive probes
(More optional, different models with different probes)
Optional Probes Reference:
Tip Model | Power Range | Crushing Capacity | Frequency(KHZ) |
Φ2 | No higher than 1000W | 0.2-5ml | 1-35% |
Φ3 | 3-10ml | 1-45% | |
Φ6 | 10-100ml | 1-60% | |
Φ8 | 20-200ml | 1-70% | |
Φ10 | 30-300ml | 10-90% | |
Φ12 | 50-500ml | 20-95% | |
Φ10 | 30-300ml | 1-70% | |
Φ15 | Above1200W | 100-600ml | 1-80% |
Φ20 | 100-1000ml | 10-90% | |
Φ22 | 200-1000ml | 20-95% | |
Φ25 | 500-1500ml | 40-95% |
