Dia 13mm Pore Size 0.45um Hydrophilic
NADE
1 Package
China
Introduction
The syringe filter is a kind of filtration product used to remove impurities from sample solutions before they enters HPLC process, which can prevent impurities from blocking the chromatographic columns, protect HPLC instruments, and prolong the lifetime of chromatographic columns. A syringe filter has to be used together with a disposable injector, as a whole set of disposing device to filter small-volume samples in labs.
Wide application fields
1. lab testing and analysis for purpose of education or commercializing research and development, to filter water phase and organic phase of solutions, and to prepare samples for teaching, quality testing, quality control, GC (gas chromatography) and MS(mass spectrometry);
2. testing and analysis of environmental atmosphere, waste gas and water quality;
3. testing and analysis of raw materials, finished and semi-finished products of foods, beverages and medicines;
4. medicine-testing, medical research and life-science research;
5. testing and analysis of micro-electronics and semi-conductors, chemicals, cement and minerals, etc.
Features
l The outer shell of the filter is made of medical-grade polypropylene material(PP).
l The outer shell of the filter is designed so compactly and considerately that sample residues will be the least and the filtration will be more fluent.
l The inner filtration membrane of the filter is imported product, with more uniform pore size, high porosity and high filtering accuracy.
l The standard Luer taper is adopted that makes the connection closer and the operation more convenient.
l Compared with other-brand filters of the same industry, our filters adopts completely imported filtration membranes, which will achieve rapider flow rate, stronger pressure resistance and better toughness not to be torn easily.
Parameters
Name | Diameter (mm) | Pore Size (μm) | Inner Filtration Membrane material | Unit(box) | Effective Filtration Area(c㎡) |
Syringe Filter | φ13 | 0.22/0.45/0.8 | Nylon/PES/MCE | 100 pcs/box | 0.7 |
Syringe Filter | Φ25 | 0.22/0.45/0.8 | Nylon/PES/MCE | 100 pcs/box | 3.9 |
Syringe Filter | Φ33 | 0.22/0.45/0.8 | Nylon/PES | 100 pcs/box | 6.3 |
Syringe Filter | Φ13 | 0.22/0.45 | PVDF/PTFE | 100 pcs/box | 0.7 |
Syringe Filter | Φ25 | 0.22/0.45 | PVDF/PTFE | 100 pcs/box | 3.9 |
Syringe Filter | Φ33 | 0.22/0.45 | PVDF/PTFE | 100 pcs/box | 6.3 |
Syringe Filter | Φ13 | 0.22above | Glass Fibre | 100 pcs/box | 0.7 |
Syringe Filter | Φ25 | 0.22above | Glass Fibre | 100 pcs/box | 3.9 |
Syringe Filter | Φ13 | 0.22/0.45 | 100 pcs/box | 0.7 | |
Syringe Filter | Φ25 | 0.22/0.45 | 100 pcs/box | 3.9 |
PVDF has (Hydrophilic/Hydrophobic), PTFE also have two (Hydrophilic/Hydrophobic), pls tell us which do you prefer when placing order.

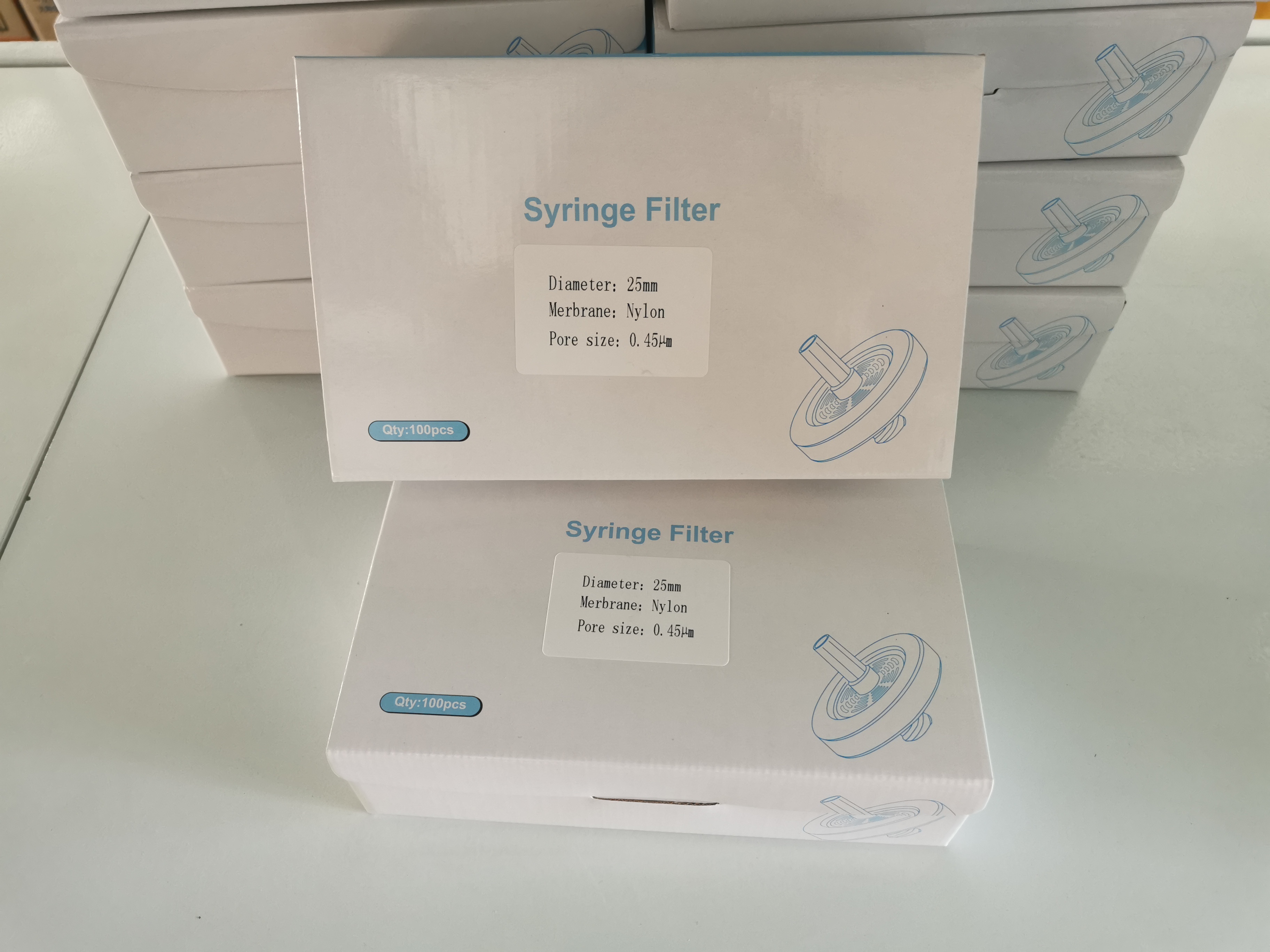

Real photos show
These above are non-sterile type, if client need sterile type, pls inquire us.
