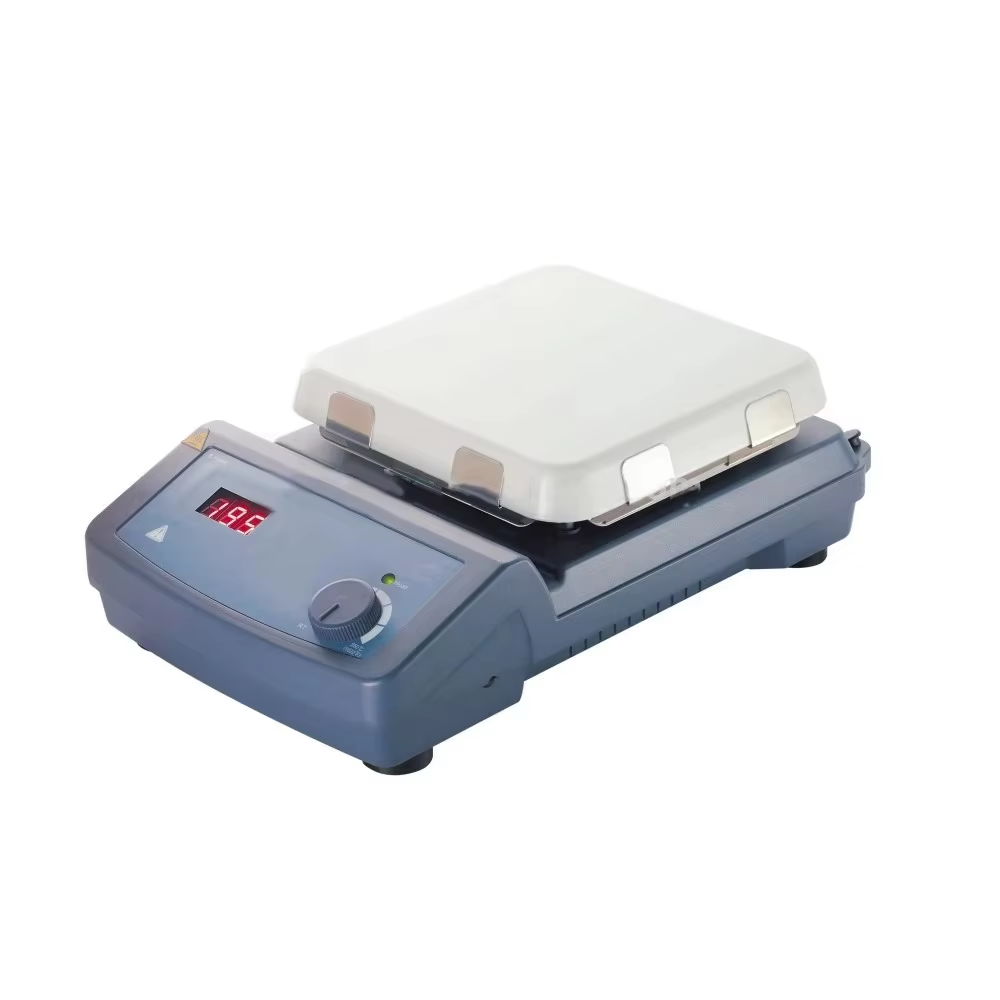

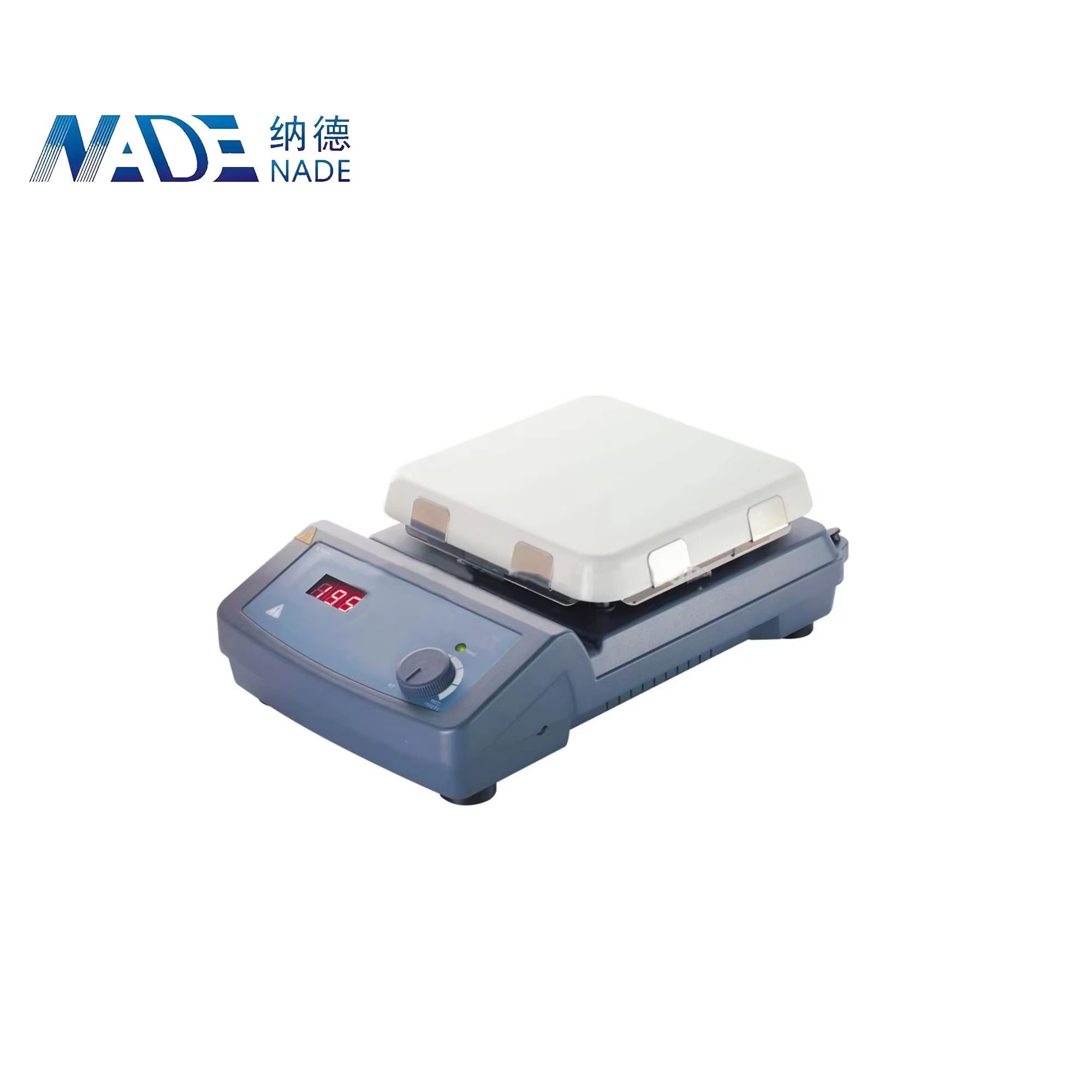

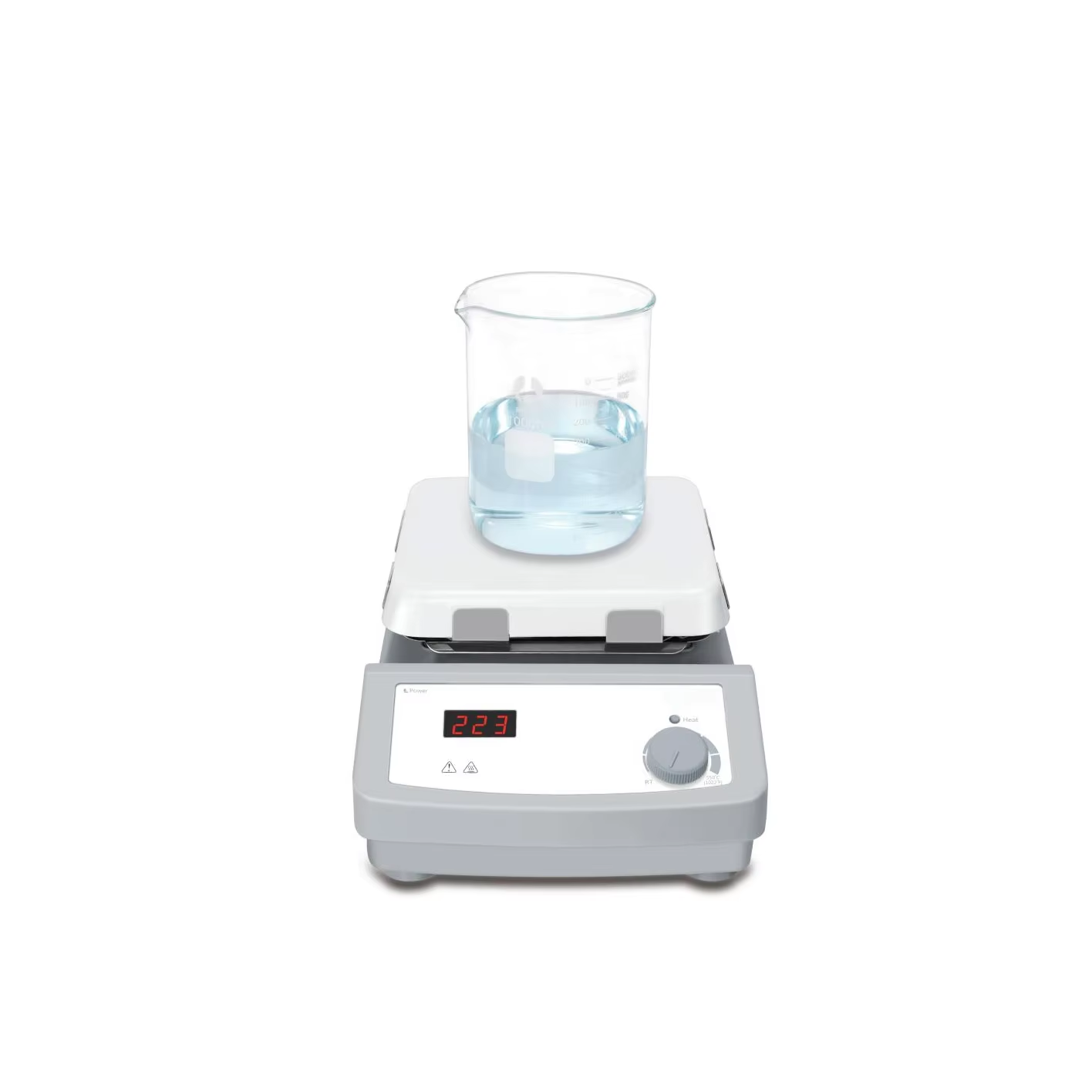

HP550-S
NADE
HP550-S
100~120V /200~240V,50/60HZ
1
1 year
China
Product Description
Advantages

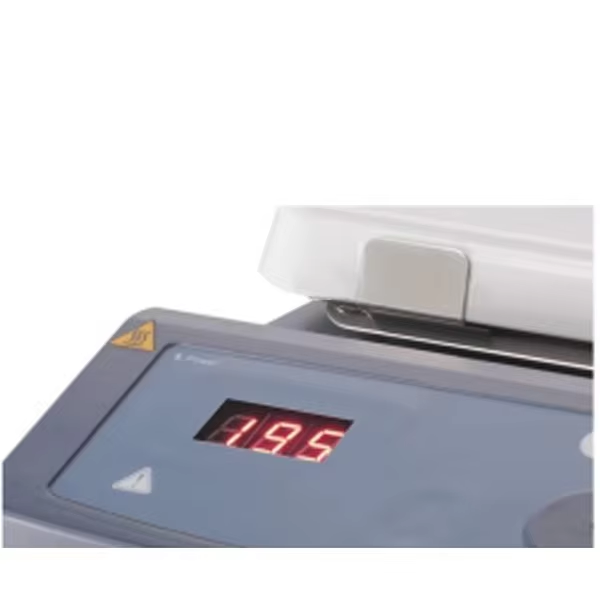

1.LED screen display actual and accurate temperature
2.Maximum temperature up to 550℃
3.Separate safety circuits with safety temperature of 580℃
4.External temperature control is possible by connecting temperature sensor (PT 1000) with an accuracy of ±0.2℃
5.Work plate provides excellent chemical resistant performance and most efficient heat transfer
6.“HOT”warning flashes when the workplate temperature is above 50℃
Specifications
| Model | HP550-S |
| Work plate Dimension [W x D] | 184x184mm (7 inch) |
| Work plate material | Glass ceramic |
| Heating position | 1 |
| Heating temperature range | Room Temp.-550℃, increment 5℃ |
| Control accuracy of work plate | ±10℃ |
| Safety temperature | 580℃ |
| Temperature display | LED |
| Temperature display accuracy | ±1℃ |
| External temperature sensor | PT1000 ( accuracy±0.2℃ ) |
| Heating warning | 50℃ |
| Protection class | IP21 |
| Power | 1010W |
| Heating Power | 1000W |
| Voltage,Frequency | 100-120/200-240V，50/60Hz |
| Dimension[WxDxH] | 215x360x112mm |
| Weight | 4.5kg |
| permissible ambient temperature and humidity | 5-40℃,80%RH |
