GF Glass Fibre Membrane Disposable Lab Consumable Syringe Filter

Diameter: 13mm/25mm
Inner filtration membrane material: GF (Glass Fibre)
Unit(box): 100 pcs/box
Effective Filtration Area(c㎡): 0.7/3.9

Availability:
  • Dia 13mm/25mm Pore Size 0.22um above

  • NADE

  • 1 Package

  • China

Introduction


The syringe filter is a kind of filtration product used to remove impurities from sample solutions before they enters HPLC process, which can prevent impurities from blocking the chromatographic columns, protect HPLC instruments, and prolong the lifetime of chromato­graphic columns. A syringe filter has to be used together with a disposable injector, as a whole set of disposing device to filter small-volume samples in labs.


Wide application fields

1. lab testing and analysis for purpose of education or commercializing research and development, to filter water phase and organic phase of solutions, and to prepare samples for teaching, quality testing, quality control, GC (gas chromatography) and MS(mass spectrometry);

2. testing and analysis of environmental atmosphere, waste gas and water quality;

3. testing and analysis of raw materials, finished and semi-finished products of foods, beverages and medicines;

4. medicine-testing, medical research and life-science research;

5. testing and analysis of micro-electronics and semi-conductors, chemicals, cement and minerals, etc.


Features

The outer shell of the filter is made of medical-grade polypropylene material(PP).

The outer shell of the filter is designed so compactly and considerately that sample residues will be the least and the filtration will be more fluent.

The inner filtration membrane of the filter is imported product, with more uniform pore size, high porosity and high filtering accuracy.

The standard Luer taper is adopted that makes the connection closer and the operation more convenient.

Compared with other-brand filters of the same industry, our filters adopts completely imported filtration membranes, which will achieve rapider flow rate, stronger pressure resistance and better toughness not to be torn easily.


Parameters

Name

Diameter

 (mm)

Pore Size

(μm)

Inner Filtration

Membrane material

Unit(box)

Effective Filtration Area(c)

Syringe Filter

φ13

0.22/0.45/0.8

Nylon/PES/MCE

100 pcs/box

0.7

Syringe Filter

Φ25

0.22/0.45/0.8

Nylon/PES/MCE

100 pcs/box

3.9

Syringe Filter

Φ33

0.22/0.45/0.8

Nylon/PES

100 pcs/box

6.3

Syringe Filter

Φ13

0.22/0.45

PVDF/PTFE

100 pcs/box

0.7

Syringe Filter

Φ25

0.22/0.45

PVDF/PTFE

100 pcs/box

3.9

Syringe Filter

Φ33

0.22/0.45

PVDF/PTFE

100 pcs/box

6.3

Syringe Filter

Φ13

0.22above

Glass Fibre

100 pcs/box

0.7

Syringe Filter

Φ25

0.22above

Glass Fibre

100 pcs/box

3.9

Syringe Filter

Φ13

0.22/0.45

 Cellulose Acetate

100 pcs/box

0.7

Syringe Filter

Φ25

0.22/0.45

Cellulose Acetate

100 pcs/box

3.9

PVDF has (Hydrophilic/Hydrophobic), PTFE also have two (Hydrophilic/Hydrophobic), pls tell us which do you prefer when placing order.

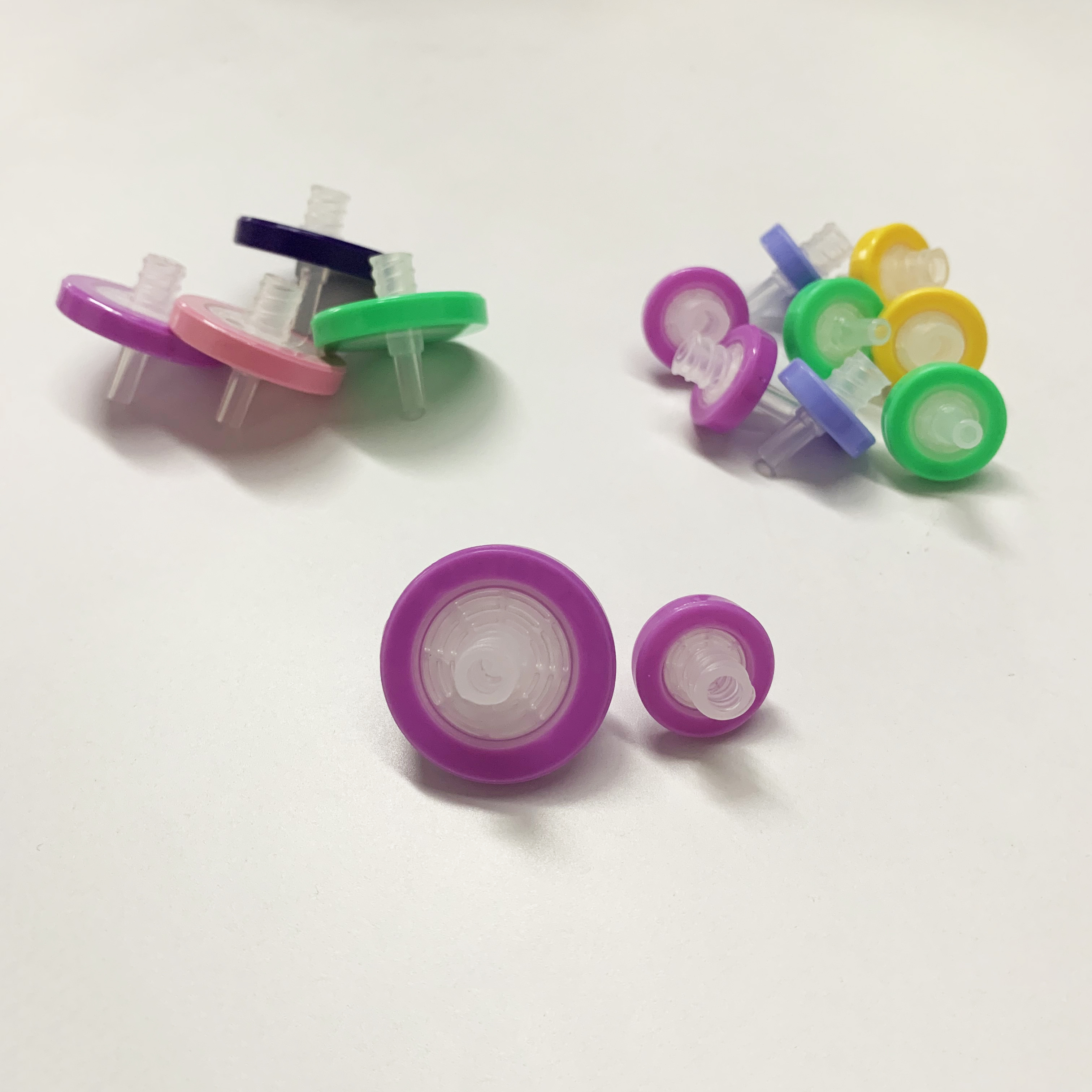

Real photos show

IMG_0098   IMG_0106   IMG_0103


IMG_0114   Syringe filter -2   Syring filter -1


IMG_20201012_125102   IMG_20201012_131224   IMG_20201012_131006

These above are non-sterile type, if client need sterile type, pls inquire us.
