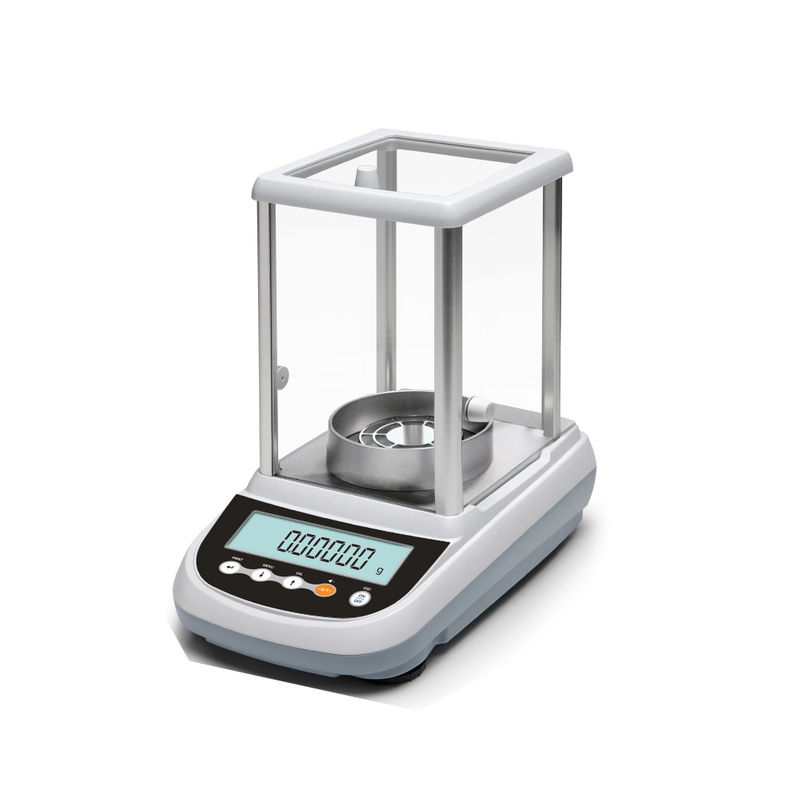

FA614AI Lab Digital Analytical Balance

Capacity(g):610g
Resolution(g):0.1mg
Min weighing(g):0.4mg
Internal calibration
Availability:
  • FA614AI

  • NADE

  • 1

  • OEM

  • 1 year

  • China

Product Description

The FA-AI High Performance Balance Series includes analytical balances with the highest measurement performance. They are equipped with a highly integrated load cell that provides high stability, is not changed by temperature and time, and has a fast response capability due to reduced mass and reduced number of components.

The FA-AI balance has an automatic internal calibration function in standard configurations to ensure that measurements are always accurate and truly unaffected by ambient temperature changes. The maximum weight of FA-AI series analytical balance is 220g/310g/410g/510g/610g/1100g. All models feature backlit LCD displays and windshields that protect the large internal measuring chambers.

Each scale is equipped with an RS232 output interface.

2.png                       1.png

                                                                                                                                              Option: static eliminator


Features

1.Internal calibration

2.LCD(White back light with black font)

3.One key/Time trigger internal calibration

4.Electromagnetic force sensor

5.Glass draft shield with 3 sliding doors for easy access to the items being weighed

6.Tare function/Counting/Percentage

7.Unit conversion(g/mg/ct/oz)...

8.Sensitivity/Speed set

9.Overload alarm/Fault alarm/Level indicator


Specification

Model

FA214AI

FA314AI

FA414AI

FA514AI

FA614AI

FA1104AI

Capacity(g)

220g

310g

410g

510g

610g

1100g

Resolution(g)

0.1mg

Min weighing(g)

0.4mg

Stable Time

≤4s

Range drift

(+10… +30°C): +/– 2ppm/°C

Display

LCD(white back light with black font)

Pan size

Φ80mm

Operation temp

5-35℃

Repeat ability

0.1mg if weight ≤ 220g           0.3 mg from 220g to 310g          0.35mg from 310g to 610g

Liner

± 0.5mg

Draft shield size

162mm×171mm×225mm

Cal.weight

Internal Calibration

Power supply

110-230 Vac, 50/60 Hz: output 24 V / 500 mA / 13 VA

Interface

RS232C(Standard)/RS485/Printer(Optional)

Dimension

345×215×345mm

Net. weight

7 kg


Optional accessories:

ION-A15 Static Eliminator

Balance plate system. USB version (BL0329) or Bluetooth version (BL0330)

DPP-250-BT Bluetooth printer for system (AC013)

TLP-50 serial printer with date/time (C054)

DPP-250 serial printer (AC007)

STAT serial printer with statistical function (AC022)

Alphanumeric external keyboard (AC005)

Serial to USB converter (E1002)

Serial cable for serial output to printer or computer (E743)

Factory calibration certificate (BL0333)
