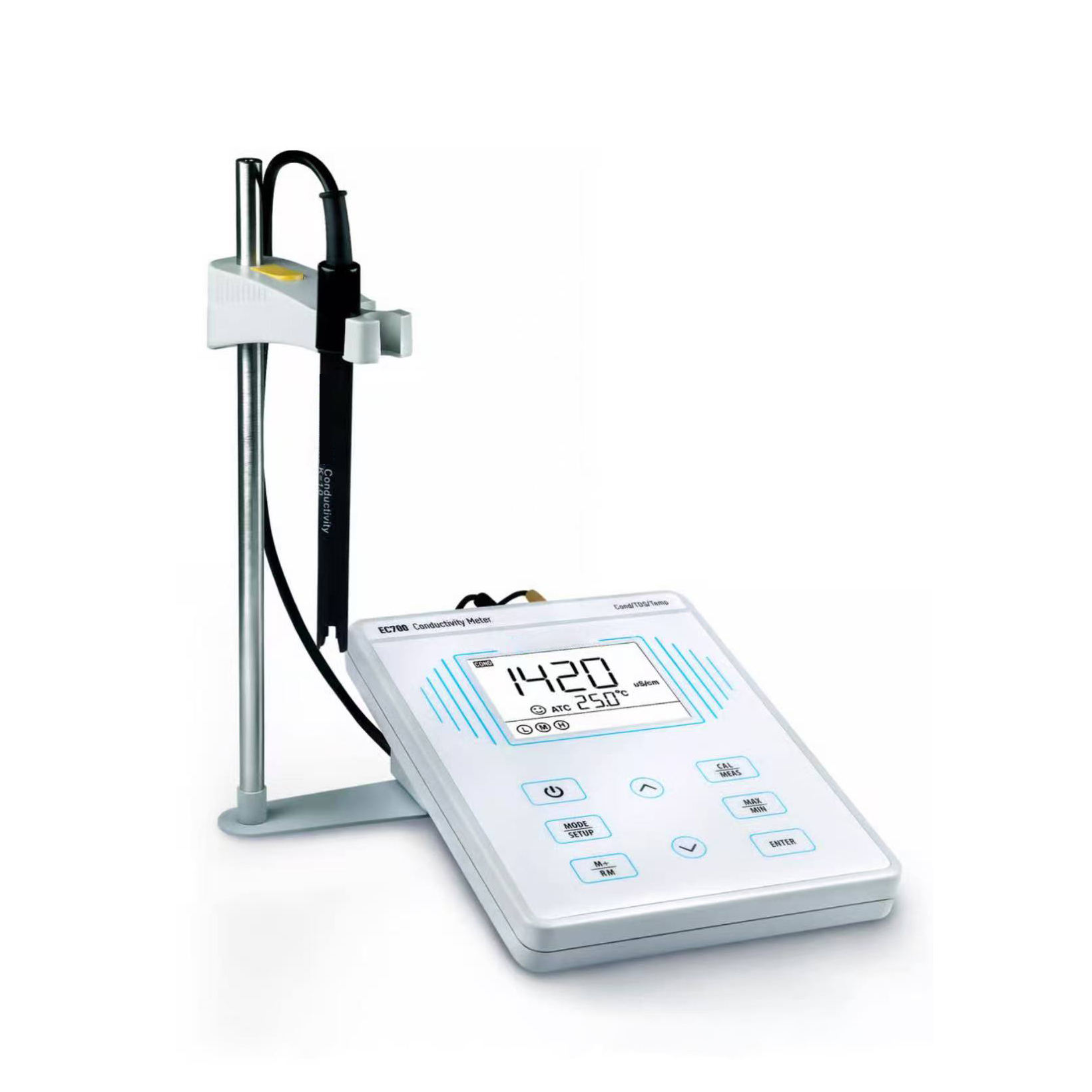

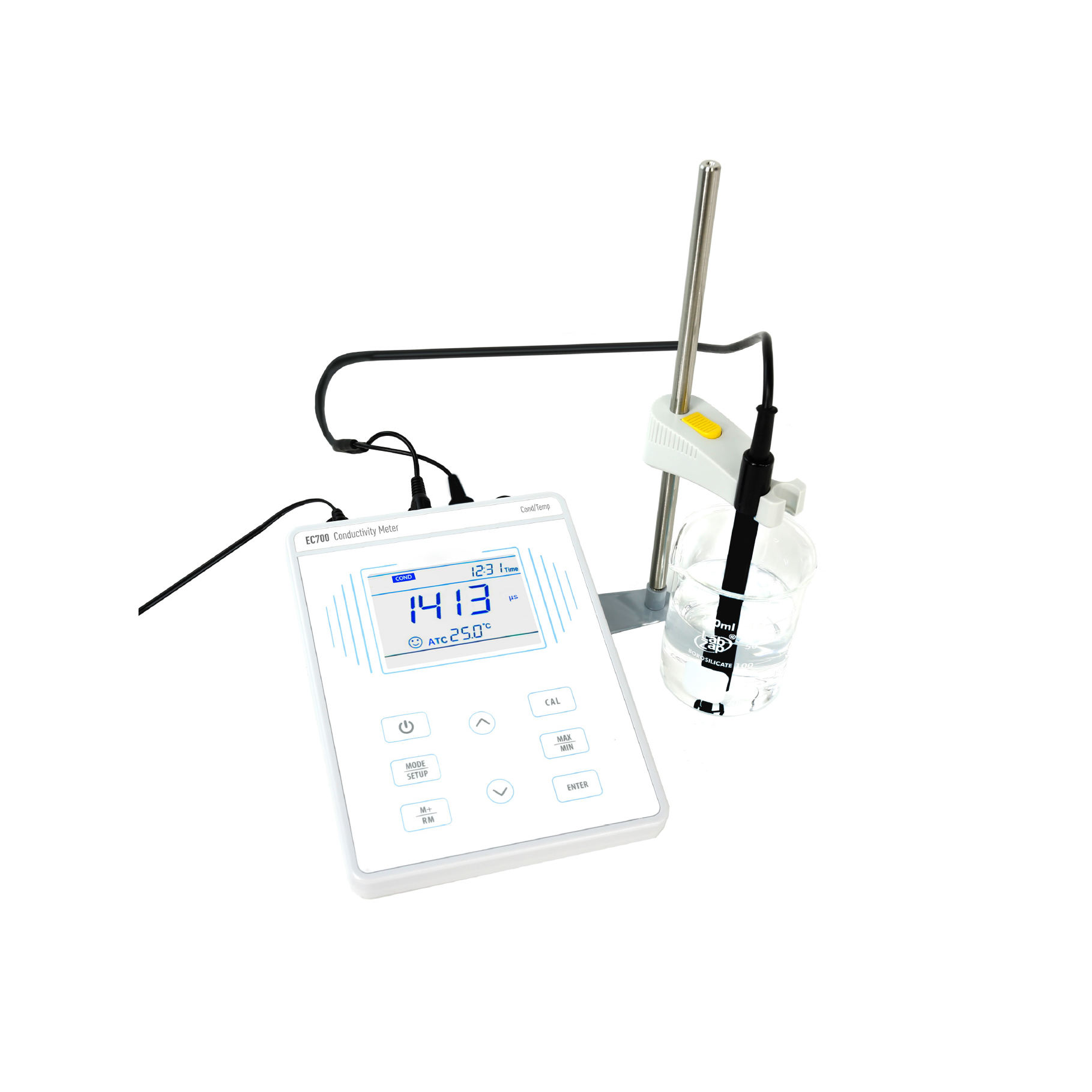

EC700 Benchtop Conductivity Meter

Measurement parameters

pH/mV/Temp

Cond./TDS/Temp

pH

Measuring Range

(0 to 14.00) pH

/

Resolution

0.1/0.01 pH

/

Accuracy

±0.01 pH

/

Temperature Compensation

0 to 100°C
Auto or Manual

/

Calibration

1 to 3 points auto calibration

/

mV

Measuring Range

±1999 mV

/

Resolution

1 mV

/

Accuracy

±0.1% F.S

/

Conductivity

Measuring Range

/

Conductivity: 0-200.0 mS/cm, divided into 4 ranges:
(0-199.99) μS/cm,
(200-1999) μS/cm,
(2.00-19.99) mS/cm,
(20.0 199.9) mS/cm


TDS: (0-100) g/L, devided into 4 ranges:
(0-99.9) mg/L,
(100-999) mg/L,
(1.00-9.99) g/L,
(10.0-100.0) g/L

Resolution

/

Cond.: 0.1/1μS/cm; 0.01/0.1 mS/cm
TDS: 0.1/1mg/L; 0.01/0.1 g/L

Accuracy

/

±1.0% F.S.

Temperature Compensation

/

0 to 50°C Auto or Manual

Electrode Constant

/

0.1 / 1 / 10 cm-1

Base Temperature

/

(15-30)°C

Temperature Coefficient

/

0.00 to 9.99%/°C, default: 2.00%/°C

Calibration

/

1 to 4 points auto calibration

Temperature

Measuring Range

0 to 100°C (32 to 212°F)

Resolution

0.1°C; 0.1/1°F

Accuracy

±0.5°C

Others

Data Storage

50 groups

Storage Content

Numbering, measurements, unit, temperature, and status of temperature compensation

Power Supply

DC9V

IP Rating

IP54 splash-proof and dust-proof

Dimensions and Weight

240*235*103mm/1kg
