WQS-S
NADE
1
CHINA
Product Description

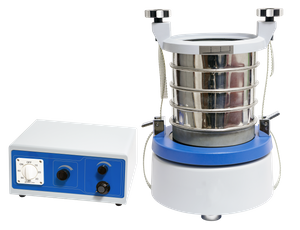

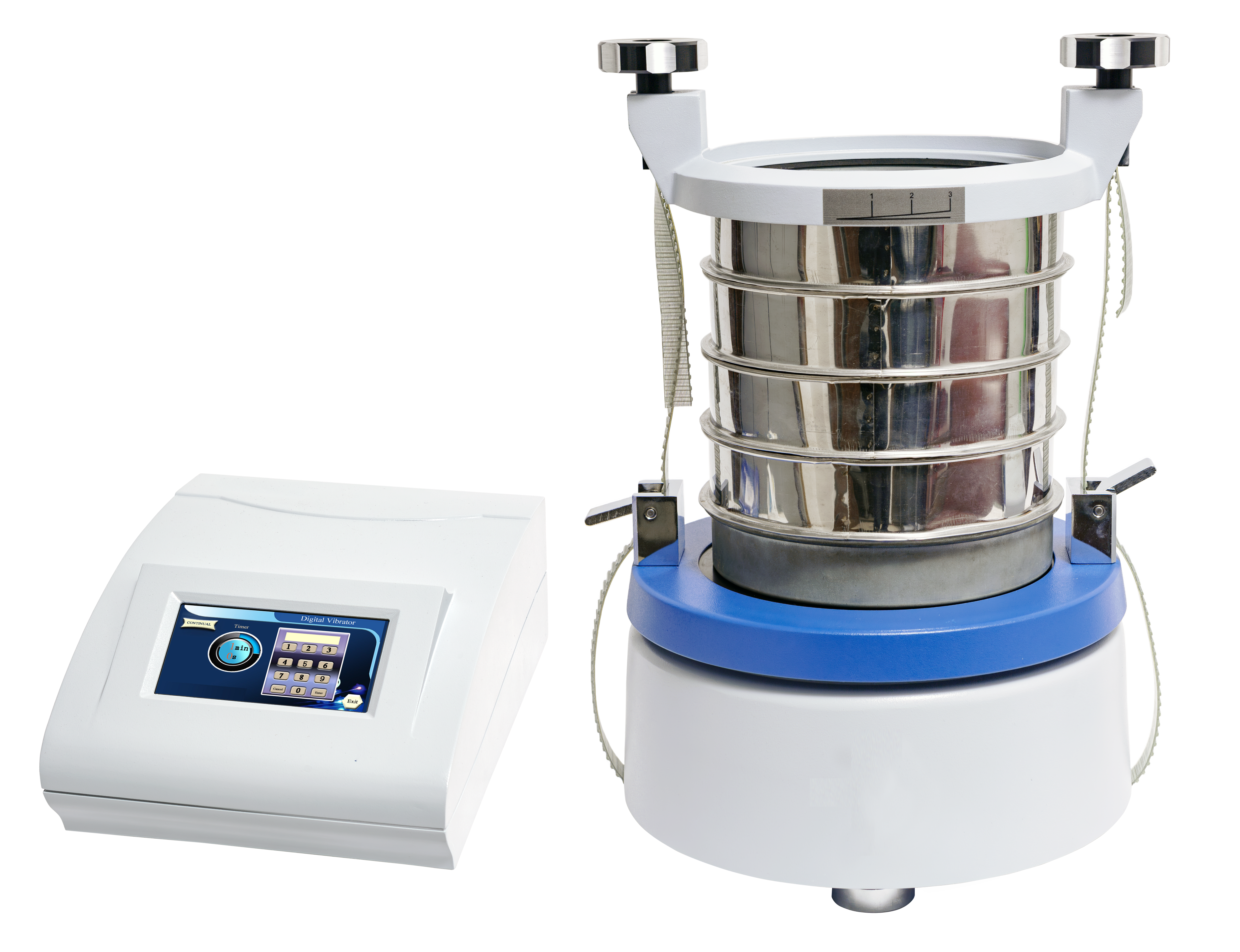

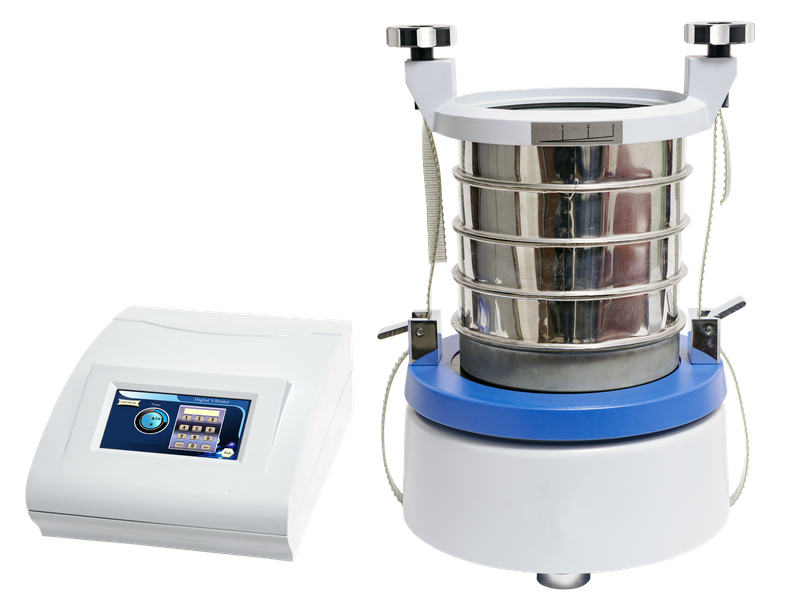

The vibrator machine is a device that uses vibration or rotational motion to drive the screen mesh to classify, sieve, or remove impurities from granular materials. Its core function lies in the efficient separation of materials based on particle size.
• Widely used in pharmaceutical, metallurgy, food, cosmetics and other industries to perform particle analysis.
• It has following features, such as, simple operation, no moving parts, and electronic control of amplitude and frequency.
• The level of performance is equivalent to the vibrator manufactured by German FRITSCH.
• Compared with the traditional manual vibrator, it can greatly reduce the work intensity and improve efficiency.
Applications
• Pharmaceutical Industry: It controls the particle size distribution of powders to ensure uniformity in tablet pressing or capsule filling.
• Chemical Industry: It screens plastic granules and rubber powders to ensure the flowability in injection molding or extrusion processes.
• Agriculture: It separates shriveled and damaged grains from crop seeds to improve the germination rate of sowing.
Specifications
Parameters/Model | WQS-S |
Measuring range | ≤325mesh |
Vibration frequency | 3000 times/min, 6000 times/ min |
Amplitude selection | 0 – 3mm continuous adjustment |
Vibraton modes | 1、Subtle Vibration 2、Intermittent shaking, amplitude can be adjusted within the range of 1 -2 and 2 -3, with each step further about0.2±0.1mm 3、Continuous, amplitude can be adjusted within the range of 1 -2 and 2 -3,with each step further about0.2±0.1mm 4、Three modes can be precisely timed 5、Three modes can be memorized even when the equipment is shut off |
Power supply | AC 220V±22V, 50Hz±1Hz, 150w |
Dimensions | Shaking unit: Φ300×210mm Control unit: 280mm×200mm×140mm |
Weight (Gross) | 25kg |
