DM0306 Low Speed Centrifuge

Maximum speed: 3400rpm
Maximum relative centrifugal force: 1600×g
Rotor capacity: 6×3mL-10mL Blood collection tube
Time setting range: 0.5-30min/Hold
Availability:
  • DM0306

  • NADE

  • 1

  • OEM

  • 1 year

  • China

Product Description

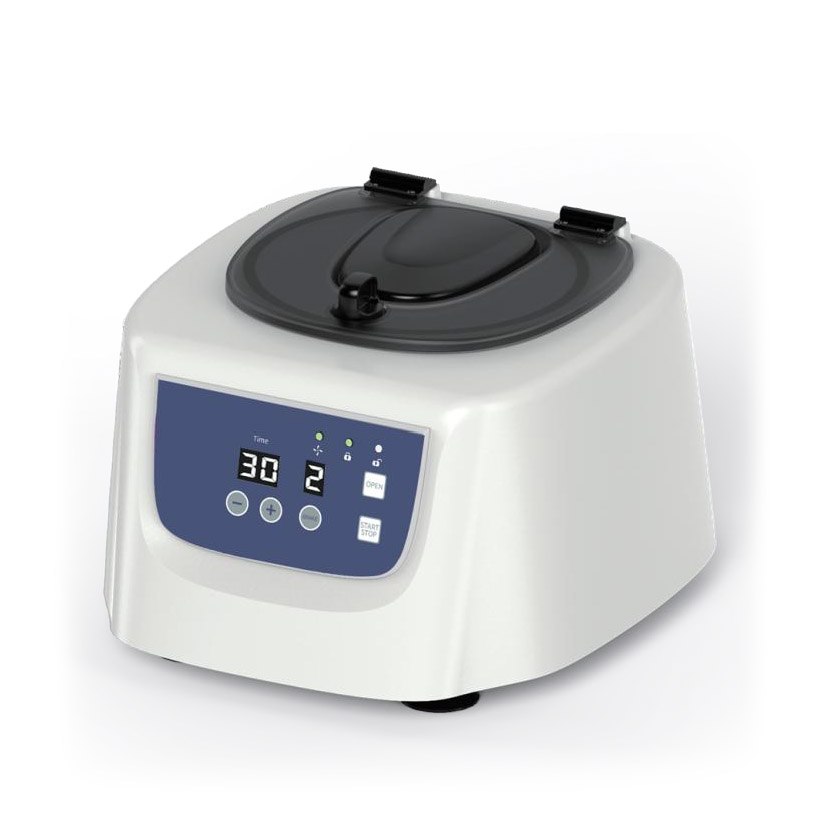

DM0306 P2

DM0306 Low Speed centrifuge

Features

Ø Beautiful appearance and small space occupation;

Ø Speed: 3400 rpm (1600xg);

Ø Rotor capacity: supports 6 × 3-10mL blood collection tubes;

Ø Electronic timer with a time setting range of 0.5-30 minutes, capable of continuous operation;

Ø LED screen, capable of displaying remaining running time;

Ø 1st gear up speed, 3rd gear down speed, supports gentle braking function, meets different experimental needs;

Ø Automatic lock cover, when the centrifuge is running, the upper cover cannot be opened, and the mechanical door lock is firmly secured to prevent debris from escaping;

Ø Transparent cover, convenient for sample observation and optical calibration, providing maximum safety and durability;


Application

DM0306 is widely used in clinical practice and is an ideal choice for serum and plasma sample separation in biochemical and medical laboratories. It is the main instrument for sample pretreatment in clinical laboratories, blood banks, medical schools, and medical research institutions.





Specification

Model

DM0306

Maximum speed

3400rpm

Maximum relative centrifugal force

1600×g

Rotor capacity

6×3mL-10mL Blood collection tube

Maximum acceleration time

10S

Maximum deceleration time

20S

Timer display

LED

Time setting range

0.5-30min/Hold

Speed up/down gear

1↑/3↓

Motor type

AC fixed frequency brushless motor

Shell protection level

IP20

Noise level

≤63dB

Voltage

100-120V, 200-240V

frequency

50Hz, 60Hz

power

80W

Protection circuit breaker

4A Replaceable

Size [length x width x height]

359×318×222mm

Weight [kg]

5.3kg

Allow ambient temperature and humidity

5-40℃, 80% RH

Security performance

Explosion proof test, door lock protection,manual door lock can be unlocked


Accessory

SE6-10P

Maximum capacity6×10mL  DM0306 ROTOR

Maximum speed3400rpm

Maximum centrifugal force1600×g

Texture of materialHigh strength plastic
