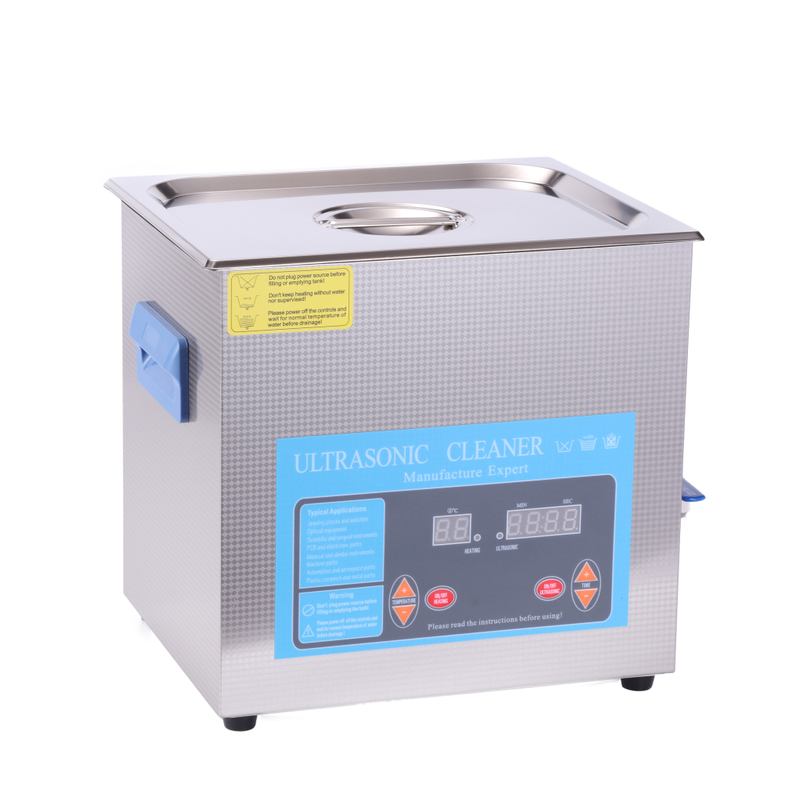

D240-10H
NADE
AC 220V/50Hz
1
1 year
China
Product Description
Introduction:
Ultrasonic cleaning is on based on the cavitation effect caused by high frequency ultrasonic wave vibration signal in the fluid. Microscopic bubbles are formed, and they implode violently causing the cavitation which create an intense scrubbing action on the surface of the item being cleaned. The bubbles are small enough to penetrate microscopic crevices, cleaning them thoroughly and consistently. Ultrasonic cleaning is extremely effective at removing dirt and grime which would normally require tedious manual cleaning by hand. It has been used to clean a wide variety of instruments and mechanical parts such as carburetors, returning them to almost like new condition without damage to delicate parts.
Application:
Service line, Electron line, Medicament line, Laboratory, Machine line, Horniness alloy line, Chemistry line, etc
Specification
Model | Capacity | Power | Frequency | heating power | Set Temp. | Set time | Tank size | Overall size |
L | W | KHz | W | ℃ | Min | (L*W*H)mm | (L*W*H)mm | |
D60-13H | 1.3 | 60 | 28/40 optional | 100 |
0-80 |
0-99 | 150*140*65 | 190*170*185 |
D60-2H | 2 | 60 | 100 | 150*140*100 | 190*170*220 | |||
D120-3H | 3 | 120 | 100 | 240*140*100 | 270*170*240 | |||
D120-4H | 4 | 120 | 100 | 300*155*100 | 330*180*240 | |||
D180-4H | 4 | 180 | 100 | 300*150*100 | 330*180*240 | |||
D180-6H | 6 | 180 | 300 | 330*155*150 | 330*180*310 | |||
D240-10H | 10 | 240 | 300 | 300*240*150 | 330*270*310 | |||
D360-15H | 15 | 360 | 400 | 330*300*150 | 360*330*310 | |||
D480-22H | 22 | 480 | 500 | 500*300*150 | 550*330*360 | |||
D600-30H | 30 | 600 | 500 | 500*300*200 | 550*330*360 |
Accessory

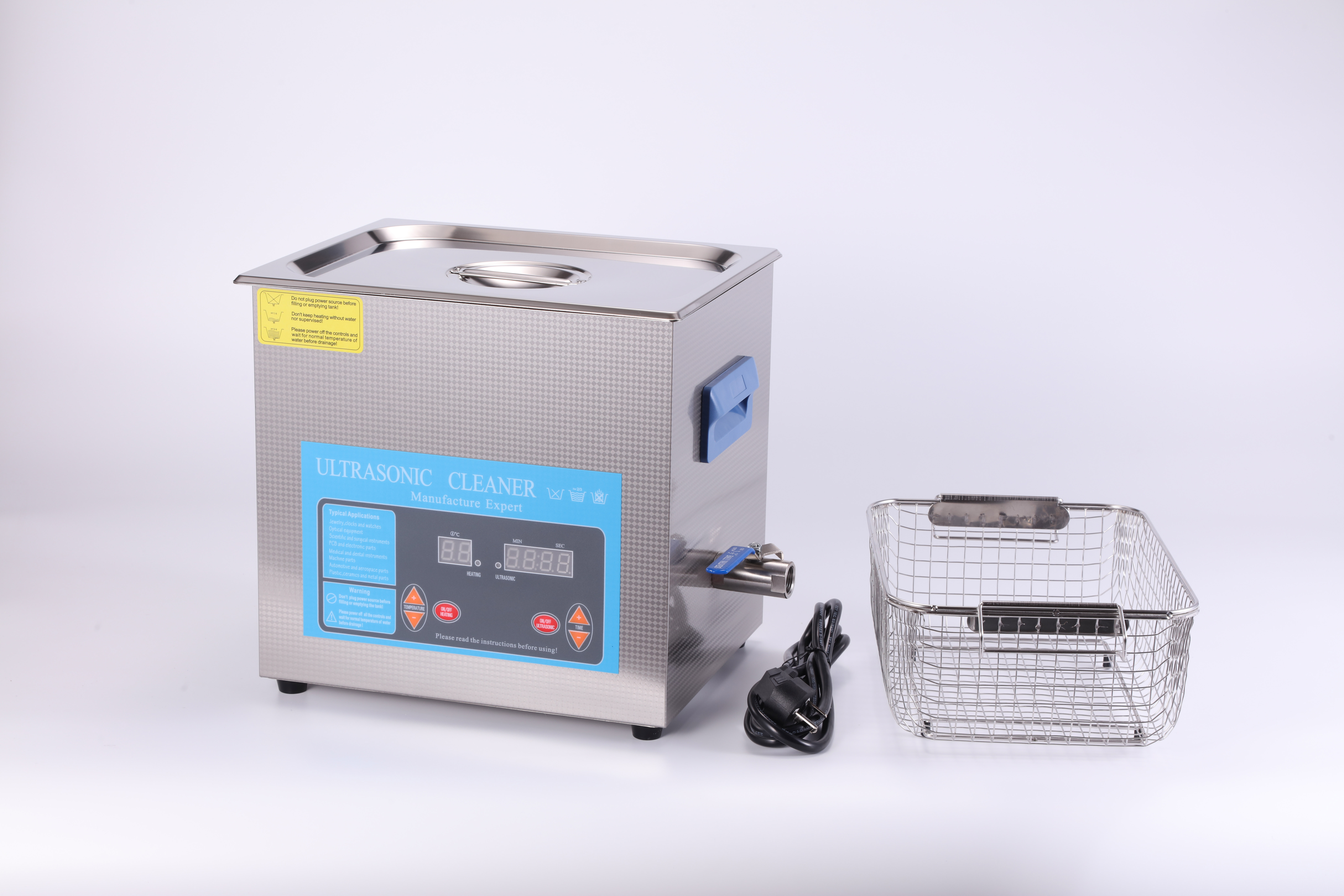

* one piece main machine
* one piece soundproof lid
* Power supply wire
* one piece mesh basket (optional)
* one user manual.
