D1524R Refrigerated Micro Centrifuge

Max. Speed:1500rpm
Max. RCF:21380x g
Temperature setting:-20℃-40℃
Run Time:30s-99 min; HOLD
Availability:
Inquire

  • D1524R

  • NADE

  • D1524R

  • 100~120V /200~240V,50/60HZ

  • 1

  • 1 year

  • China

Product Description


D1524R
High-speed Refrigerated Micro Centrifuge
with one rotor for free

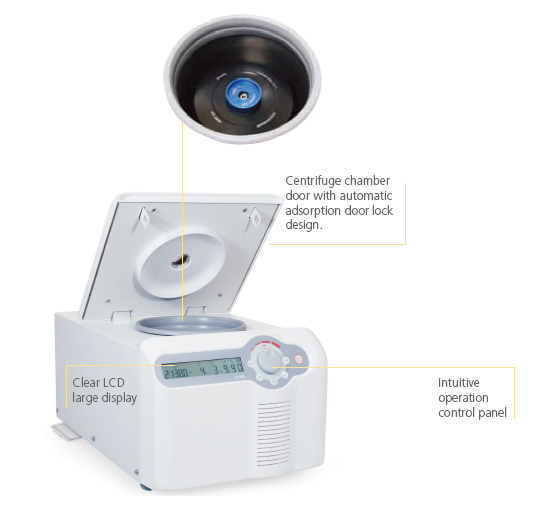

Detail image:

NADE D1524R laboratory high speed 15000rpm LCD display Refrigerated Micro Centrifuge


Features

1.Electronic Magnetic door locking system - the lid can be closed with one hand soft touch

2.Precooling, the compressor automatically starts cooling as long as the set temperature is lower than the ambient temperature
3.Sound indicator at the end of running.
4.Temperature range -20℃ to 40℃
5.Short pre-cooling time of only 7minutes from room temperature to 4℃
6.Up to 9program storage capacity
7. 3-layer sealed rotors ensure safe centrifugation
8.High-strength aluminum alloy rotor can be fully autoclavable at 121℃
9.Rotor imbalance detection alarm
10.Adjustable acceleration/deceleration at 9 levels allows gentle braking at low speed for better separation
11.Five rotors with 0.2mL, 0.5mL,1.5mL, 2mL and 5mL centrifuge tubes/ PCR tubes capacity
12.An external condensation tank prevents water accumulation within centrifuge chamber


Applications

Ideal for centrifugation of temperature sensitive samples, such as live cells, animals or proteins. It allows them to be used in a multitude of applications, including pelleting of DNA and RNA samples, pelleting of PCR amplified nucleic acids, separation of antibody and protein precipitates, performing enzymatic tests, removing cell debris from cell homogenates, and achieving bacterial and yeast cell fractionation.

Specification

Specifications

D1524R

Max. Speed

15,000rpm (200-15,000rpm) in 100rpm increments.

Max. RCF

21,380*g, step: 10*g

Capacity

1.5/2mL*24, 0.5mL*36, PCR8*4, 5mL*12, 5mL*18.

Temperature setting

-20℃- 40℃

Timing

30s-99 min; HOLD (continuous running)

Motor Type

DC brushless motor

Safety Performance

Dual door lock, over-speed detection, over-temperature detection with Internal diagnosis system.

Power Requirements

Single phase, 200-240V, 50Hz, 500W

Dimensions(mm)

332(Width) * 553(depth) * 283(height)

Weight

30kg

Acceleration and deceleration time

25s↑25s↓

Noise

≤56dB

Other functions

Rotation speed/RCF switchover, inching operation, running process indicator, sound alert. Acceleration/ deceleration in 9 steps, program storage capacity.


Accessories

Available rotors

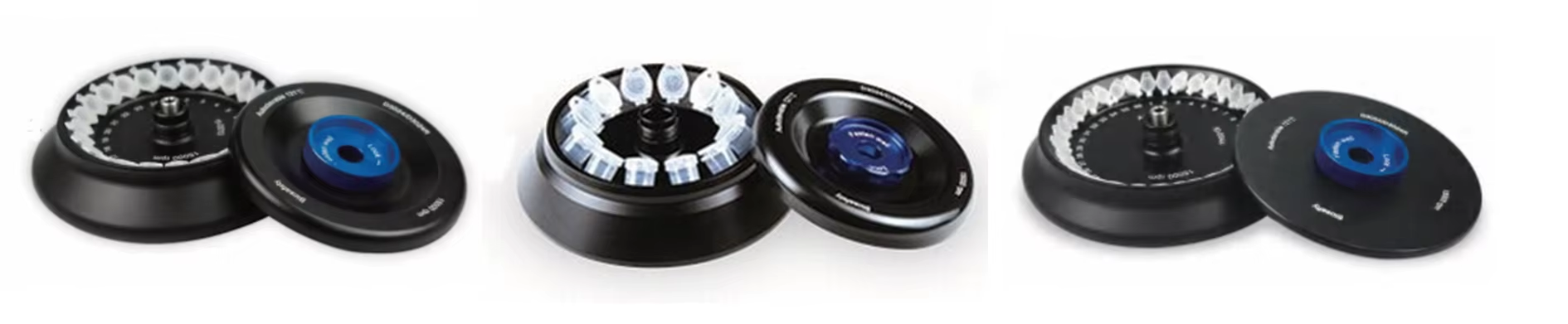

AS24-2 Cat.No.19400069 AS12-5V
(cone bottom)
Cat.No.19400070 AS36-05 Cat.No.19400071
for D3024&D1524R
Max.speed:15000rpm
Max. RCF:21380 x g
Rotor capacity:2mL/1.5mLx24/0.2mLx24/0.5mLx24
Rotor material: Aluminum alloy
Biosealing: Yes
Available rotor adapters: A02P2,A05P2
for D3024&D1524R
Max.speed:15000rpm
Max.RCF:21380x g
Rotor capacity:5mLx12(Cone bottom)
Rotor material: Aluminum alloy
Biosealing:Yes
for D3024 & D1524R
Max.speed:15000rpm
Max.RCF:21380x g
Rotor capacity:0.5mLx36,0.2mLx36
Rotor material: Aluminum alloy
Biosealing:Yes
Available rotor adapters: A02P05

32

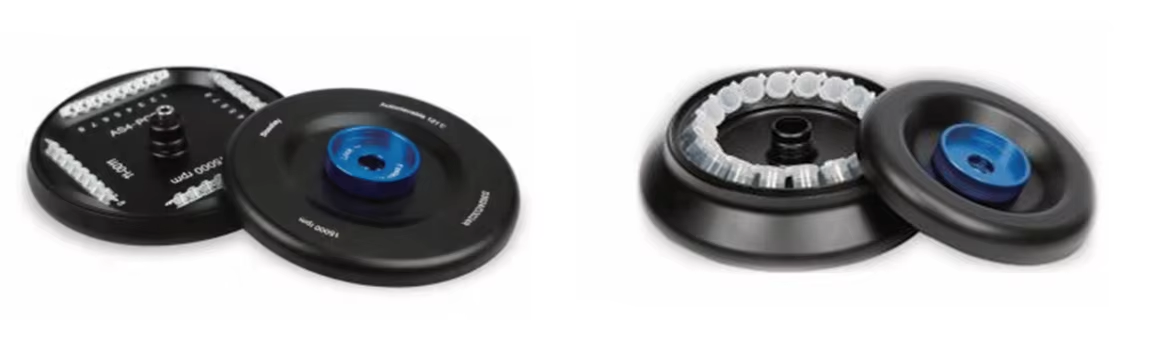

AS4-PCR8 Cat.No.19400072 AS18-5
(round bottom)
Cat.No.19400073
for D3024&D1524R
Max.speed:15000rpm
Max. RCF:21380 x g
Rotor capacity:0.2mL/PCR8x4
Rotor material: Aluminum alloy
Biosealing: Yes
for D3024&D1524R
Max.speed:15000rpm
Max. RCF:21380 x g
Rotor capacity:5mLx18(Round bottom)
Rotor material: Aluminum alloy
Biosealing: Yes

33

Available adapters
A02P2 Cat.No.19500001 A05P2 Cat.No.19500002 A02P05 Cat.No.19500003
0.2mL rotor adapter
Used with A12-2, A12-2P, AS24-2 and A24-2P rotors
24pcs/pk
0.5mL rotor adapter
Used with A12-2, A12-2P, AS24-2 and A24-2P rotors
24pcs/pk
0.2mL rotor adapter
Used with AS36-05 rotors
36pcs/pk

34
